Do You Know What’s Coming into Your Facility?

The challenges facing Law Enforcement, Corrections and Community Justice Agencies constantly increase. The nature and type of contraband continues to change. The SOTER RS offers a proven solution, through evolving product development and constant innovation to offer our Clients the most effective and efficient solution.

Now offering THEIA AI, the first full body automatic detection software, the SOTER RS

Learn More About The SOTER RS
and Stop the Flow of Contraband into your Facility

SPECIFICATIONS

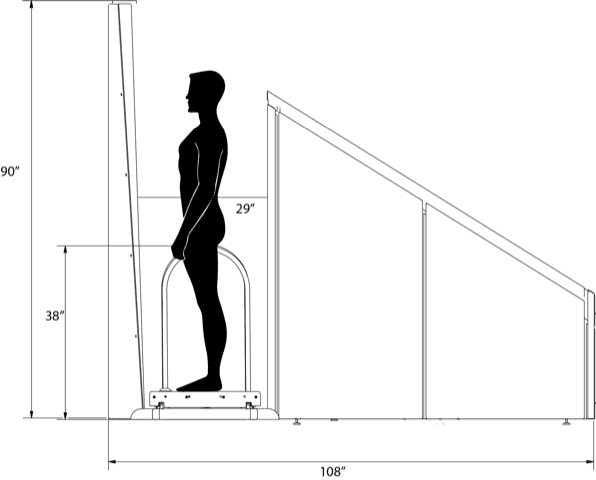

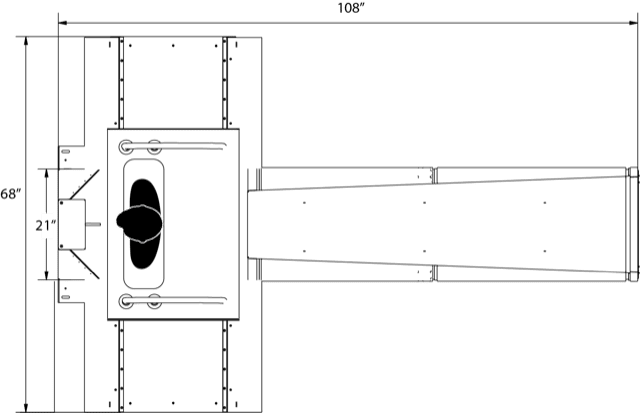

  •  Dimensions SOTER RS:  108″(L), 90″(H), 68″(W)
  • Dimensions Operator Station: 27″(L), 56″(H), 21″(W)
  • Weight: 1,650 lbs
  • Construction: Steel
  • Covers: Steel

  • Power supply: 230 VAC 1 phase / 110 to 125 VAC +-10% (50/60 HZ)
  • Power consumption: <2 KVA
  • E-stops: 2

  • Humidity: 10% – 90% (non-condensing)
  • Storage temperature: 0°C to 70°C
  • Operating temperature: 0°C to 40 °C
  • Power consumption: <2KVA
  • Sound pressure: <40 dB

  • Image display: b/w (65K Grey Level)
  • Image enhancements: Sharpen, Emboss, Sepia, 3D, Negative/Medical, Color filters
  • Display: 23″ Color Multi Touch Screen
  • Software: Controller, Viewer applications (Win 10 IoT)
  • Data storage: Local SQL DB
  • Data storage: Central Server SQL DB (optional)
  • Data exchange: Data synchronizer adjustable to network speed
  • Identification: Biometric (Fingerprint) Reader

  • Wireless operation: Via Tablet
  • 2nd Operator Station: Floor, Wall or Desk Mounted
  • ID camera: Client photo – SVGA 800×60
  • 2nd Monitor for Torso: 23” Color Multi Touch Screen
  • Web-service: Interfacing with JMS
  • Subject identification & Operator authentication: Biometric Reader, Barcode Reader, or RFID Tag Reader

Our SOTER RS Full Body Security Scanning System is US Federal Government Food and Drug Administration Center for Devices and Radiological Health approved – “SOTER RS – for Personnel Security Screening Systems using X-Ray ANSI/HPS Standard N43.17: 2009”.

The SOTER RS offers industry leading detection capacity and image resolution.

THEIA uses complex Artificial Intelligence (AI) Software, to automatically highlight and identify anomalies in scan images. THEIA is driven by machine learning algorithms. It has been trained on large collections of “negative” body scan images (images that are free of any contraband).
These scans have taught THEIA what a negative scan should look like, and it has learnt therefore to recognize anything that should not be part of a full body scan and highlight the anomaly to the Operator. The symbiotic relationship between the Operators and THEIA reduces Operator error and improves overall safety within the Facilities.

Process Inmates Quicker & More Accurately

Our scan process is fast and easy with an intuitive interface that your staff will be find familiar and easy to use.

Find More Contraband

Your staff can find even the smallest contraband and you can adjust the scan duration and strength based on the risk level.

Maximize Safety & Security

Your staff can scan from a safe distance with no invasive search techniques or close proximity.
